Aluminium

Ventilated facades

Construction systems that protect the building, improve energy efficiency and enhance its architectural appearance.

HomeSolutionsVentilated facades

System components

The performance of a ventilated facade comes not from a single element, but from how all components are designed and integrated into one system. The load-bearing structure, the fixing system, the thermal insulation and the cladding material work together as a whole.

  • Aluminium load-bearing structure
  • Ventilated cavity
  • Continuous thermal insulation
  • Multiple fixing systems

Fixing systems

Concealed mechanical fixing

Clip-and-clamp system

Invisible fixing from the outside, using extruded aluminium clips. Panels can be installed and replaced individually, without affecting the rest of the facade.

Point fixing

Point Fixing

Mechanical fixing with stainless-steel spider fittings and visible fixing elements. Recommended for facades with a strong architectural character.

Structural fixing

Structural bonding

Invisible fixing with elastic structural adhesive. It spreads loads evenly, absorbs material expansion and gives the facade a continuous appearance.

Cladding materialEnamelled glass

A premium cladding solution for ventilated facades with high aesthetic requirements. The ceramic enamelling process provides colour stability, resistance to environmental factors and a durable finish.

  • Tempered or tempered-laminated glass
  • High resistance to UV radiation and weathering
  • RAL / NCS colours, gloss, matte or metallic finish
  • Long-term colour stability
  • Compatible with mechanical and structural fixing

7 photos

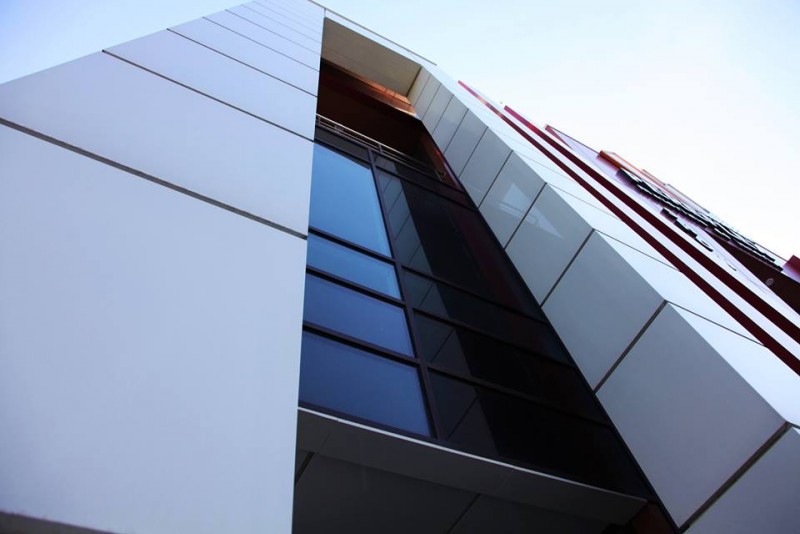

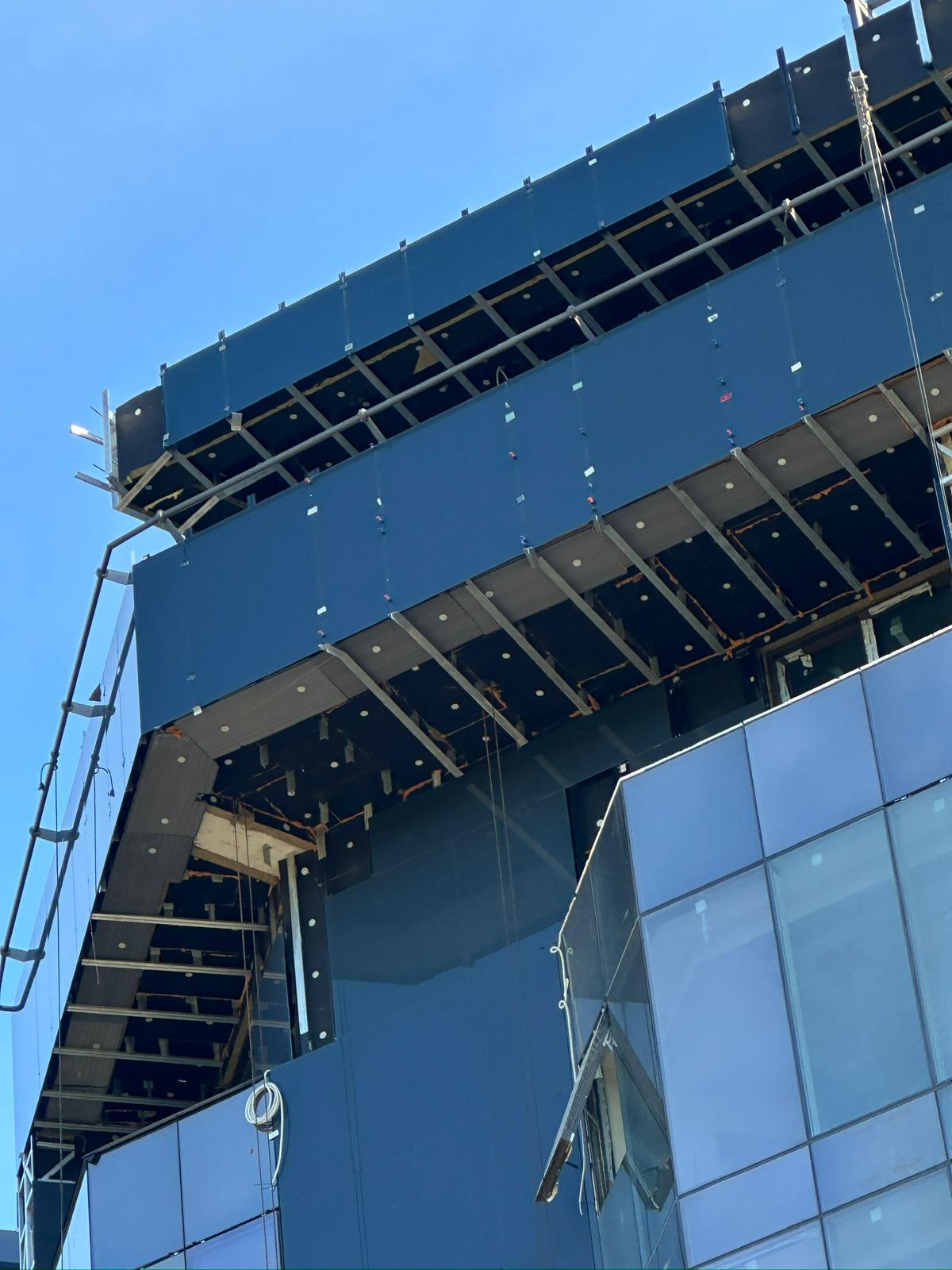

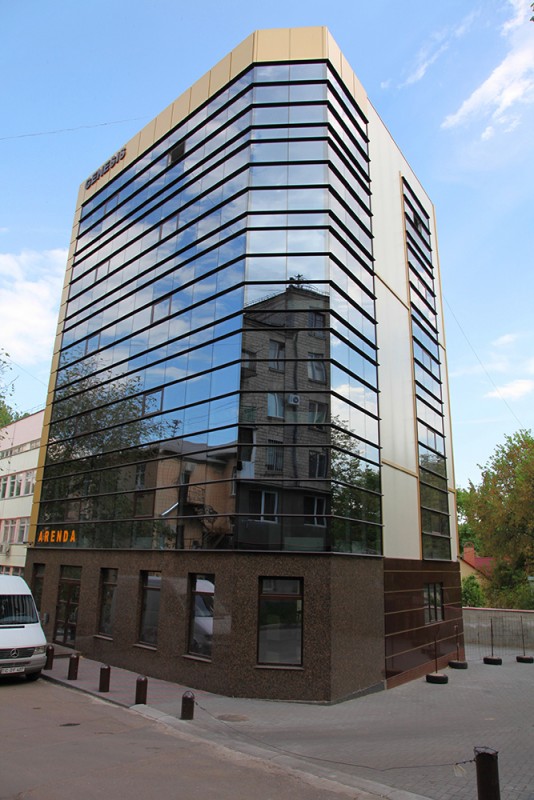

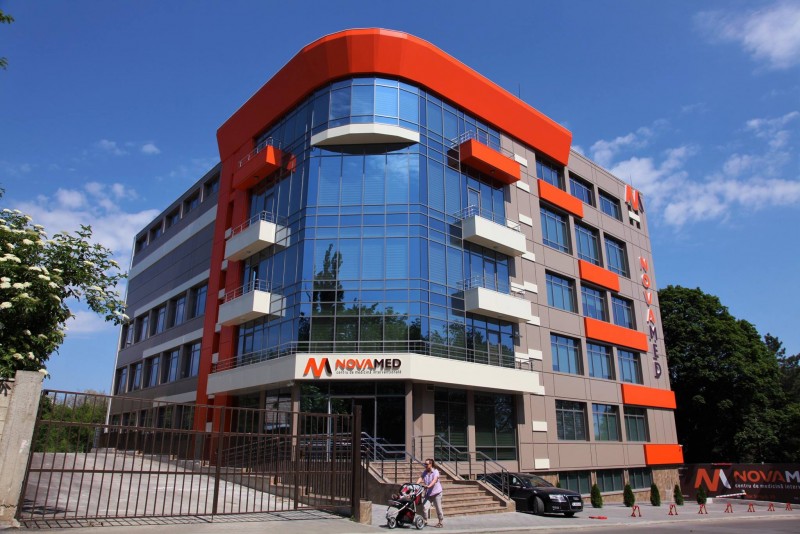

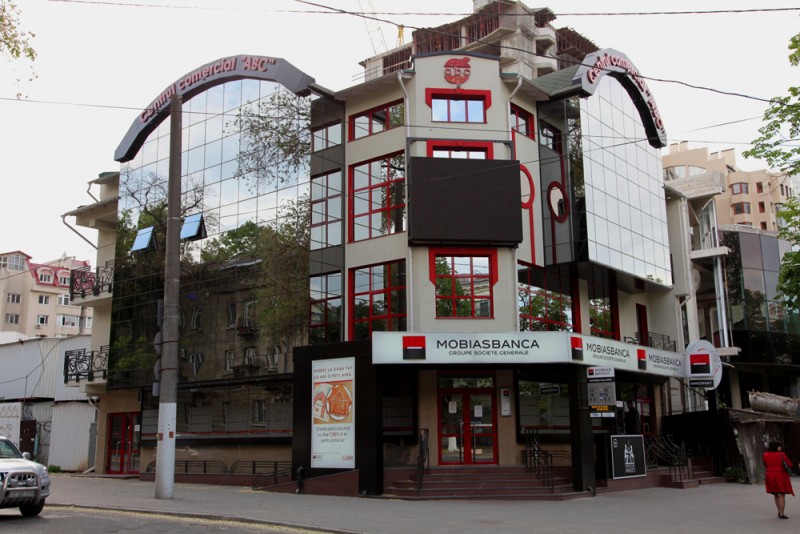

Ventilated facades — Consvitraliu 1Ventilated facades — Consvitraliu 2Ventilated facades — Consvitraliu 3Ventilated facades — Consvitraliu 4Ventilated facades — Consvitraliu 5Ventilated facades — Consvitraliu 6Ventilated facades — Consvitraliu 7
Back to Solutions
Aluminium

System advantages

Performance

Thermal and acoustic insulation, continuous facade ventilation and protection against moisture.

Flexibility

Compatible with multiple cladding materials, with bespoke solutions and several fixing systems.

Durability

Resistance to weathering and UV, low maintenance and a long service life.

Do you have a project underway?

Whether it is a home, a commercial space or an industrial project, the Consvitraliu team is ready to identify the right solution.

Request a quote0721 161 161
